Fibre Optic Cable

Body and Soul of Data Transmission

We always have approx. 1.000 km cables of different types in stock - micro cables, standard outdoor cables, indoor cables, universal cables, fibre units and much more. Cable components and manufacturing processes are subject to strict test procedures according to international standards (IEC).

What do you need?

  • Standard Duct Cables
  • Steel or non-metallic armoured Cables
  • Self-supporting Aerial Cables (ADSS)
  • Micro Cables
  • Indoor Cables
  • Universal Cables for Campus and Backbone
  • Fibre Units

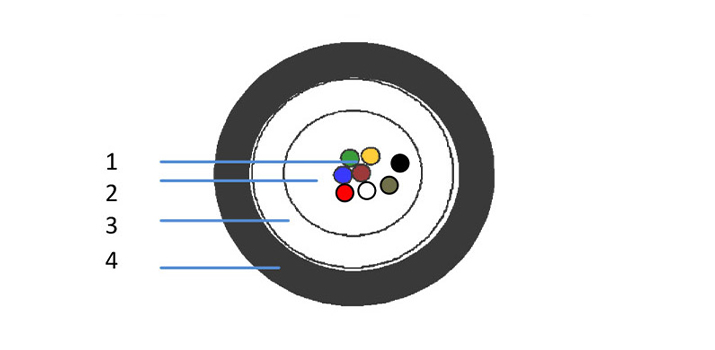

FO Micro Cable, up to 12 SM Fibres

Central tube non-armoured micro cable with up to 12 SM fibres acc. to ITU-T G.652D or G.657A1.

Typical cross section for 8F

  1. primary coated SM fibre
  2. tube filled with thixotropic jelly
  3. loose tube material: PBTP
  4. UV-resistant black PE sheath

Characteristics and Advantages

  • For airblown FTTH Applications
  • Suitable for indoor Use
  • Due to PE Sheath, also apt for Outdoors
  • Fully dielectric, immune against electromagnetic Interferences
  • Suitable for Micro Ducts

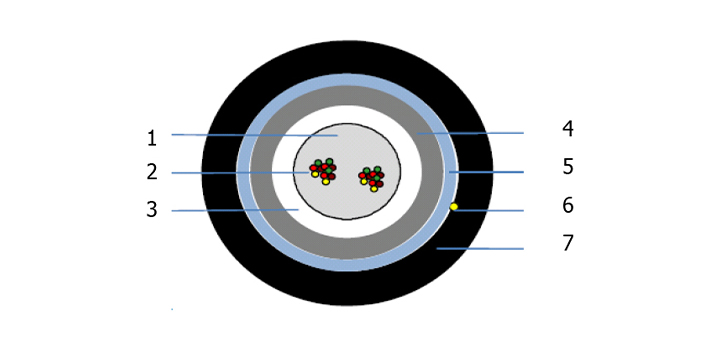

Rodent protected central Tube FO Cable, up to 24 SM Fibres

Central tube dielectrically armoured cable with up to 24 SM fibres acc. to ITU-T G.652D or G.657A1.

Typical cross section for 24F

  1. primary coated SM fibre
  2. tube filled with thixotropic jelly
  3. material/colour of tube: PBTP/natural
  4. peripheral strength member: glassrovings
  5. water blocking tape
  6. ripcord beneath outer sheath
  7. black LSZH sheath

Characteristics and Advantages

  • For use in Ducts, blown or pulled
  • In Areas with Rodents
  • Low Cable Weight for quicker and easier Installation
  • Particulary robust Cable
  • Flame resistant

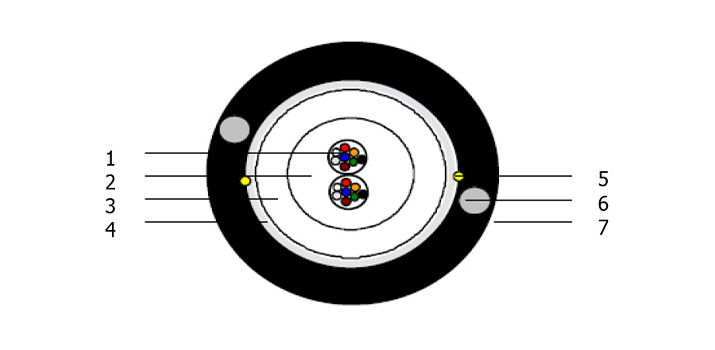

A-DQ(ZN)2Y - Central Tube FO Cable with FRP strength Elements, up to 24 Fibres

Central tube cable with up to 24 SM fibres acc. to ITU-T G.652D or G.657A1

Typical cross section for 16F

  1. primary coated SM fibre
  2. tube filled with thixotropic jelly
  3. material of tube: PBTP
  4. water blocking tape
  5. ripcord beneath outer sheath
  6. FRP elements, embedded in sheath
  7. black UV-resistant HDPE sheath

Characteristics and Advantages

  • For Use in Ducts, blown or pulled
  • Low Cable Weight for quicker ans easier Installation

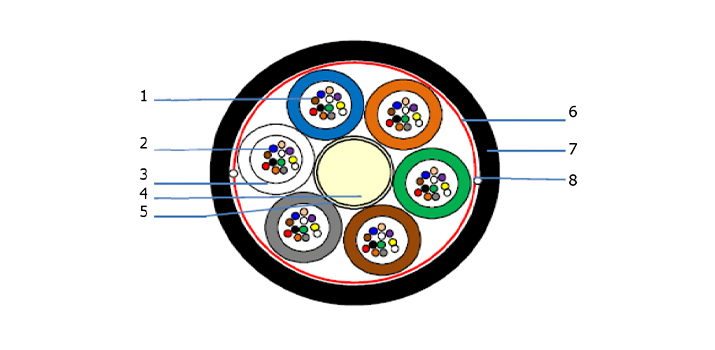

A-DQ(ZN)2Y - Multi Tube FO outdoor Cable, 48 - 72 Fibres

Multitube cable with dry core, with up to 72 SM fibres acc. to ITU-T G.652D or G.657A1

Typical cross section for 72F

  1. primary coated SM fibre
  2. tube filled with thixotropic jelly
  3. material of tubes: PBTP
  4. FRP central strength element
  5. water blocking yarn, applied helically over FRP
  6. water swellable tape over cable core
  7. black HDPE sheath
  8. ripcords for easier sheath removal

Characteristics and Advantages

  • For Duct Installation
  • Single layer stranded Cable Construction
  • Particularly robust and insect resistant Cable
  • Flexible Tubes for easy Fibre Routing inside Closures

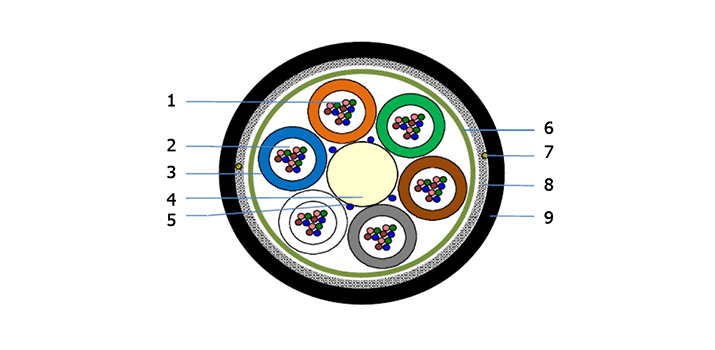

A-DQ(ZN)B2Y - Multi Tube rodent resistant FO Cable, up to 144 Fibres

Multi tube cable with dry core and dielectric rodent protection, with up to 144 fibres acc.to ITU-T G.652D or G.657A1

Typical cross section for 72F

  1. primary coated SM fibre
  2. tube filled with thixotropic jelly
  3. material of tubes: PBTP
  4. FRP central strength element (PE-coated for 96 + 144f cable)
  5. water blocking yarn, applied helically over FRP
  6. water swellable tape over cable core
  7. ripcords for easier sheath removal
  8. glassfibre yarn armouring
  9. black HDPE sheath

Characteristics and Advantages

  • Installation in Ducts or direct Burial
  • In Areas with high mechanical Loads and/or with Rodents
  • Particularly robust Cable
  • All dielectrically armoured
  • Flexible Tubes for easy Fibre Routing inside Closures

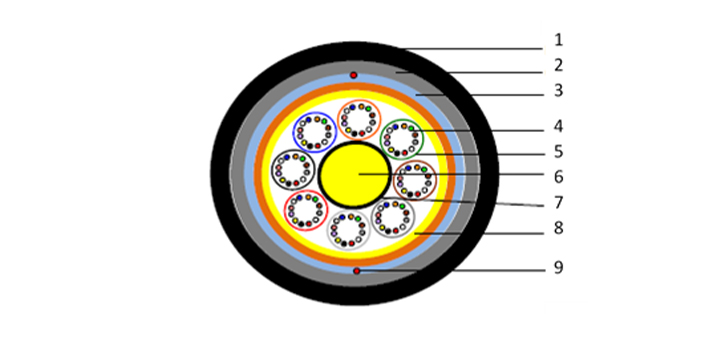

A-DQ(ZN)(SR)2Y - Multi Tube steel armoured FO Cable, 96 Fibres

Multi tube cable with dry core and corrugated steel tape armouring with up to 96 fibres acc. to ITU-T G.652D or G.657A1.

Typical cross section for 96F

  1. black HDPE sheath
  2. corrugated steel tape
  3. water swellable tape
  4. SM fibres
  5. PBTP loose tube, filled with thixotropic jelly
  6. FRP central strength member, PE-upcoated
  7. water swellable yarns, wrapped over FRP
  8. glassfibre yarns as peripheral strength member
  9. rip cords



Characteristics and Advantages

  • Installation in Ducts or direct Burial
  • In areas with high mechanical Loads and/or with Rodents
  • Particularly strong and robust Cable

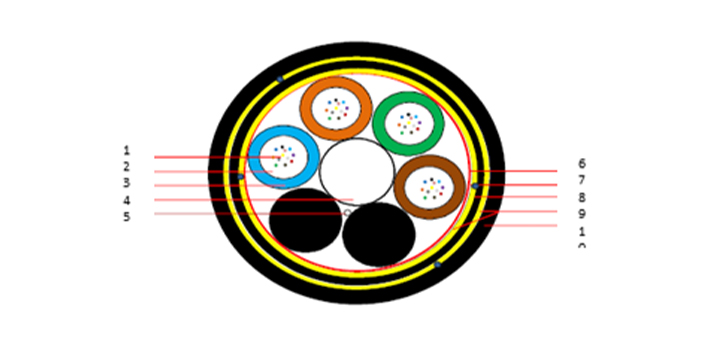

ADSS-DQ2Y(T)2Y - Double sheath self-supporting aerial Cable, 48 Fibres, for up to 400 m span Width

Multi tube cable with dry core, water swellable tape and high modulus Aramid yarns as peripheral strength member with 48 fibres acc. to ITU-T G.652D or G.657A1

Typical cross section for 48F

  1. primary coated fibres
  2. tube filling compound
  3. loose tubes
  4. FRP central strength member
  5. water blocking elements
  6. water swellable tape core wrapping
  7. rip cords
  8. high modulus Aramid yarns as peripheral strength member
  9. black HDPE outer sheath

Characteristics and Advantages

  • Installation in Ducts or direct Burial
  • In Areas with high mechanical Loads and/or with Rodents
  • Particularly strong and robust Cable
